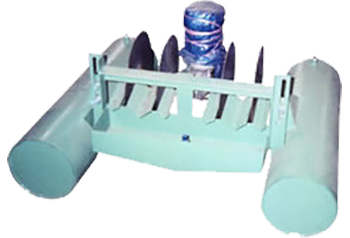

Hydrocyclone Type Oil Skimmers


Working :
A funnel sucking floating scum from coolant level is attached to SS floats. A 4-bar mechanism maintains this funnel in horizontal plane even with changing coolant level. Pump sucks floating scum & passes it through a hydrocyclone segregating scum from coolant. Coolant drains back to tank through under-flow port while scum is collected in a bin placed on tank. Scum is manually drained from the bin.

Features :
• Handles very large quantity of floating scum from large coolant systems.
• Automatically adjusts to level variations in the tank.
• Pump is placed at ground level near tank requires no priming
• A 4-bar mechanism automatically maintains level of the floating suction in line with the coolant level.
• Hydrocyclone segregates floating scum from coolant by density difference.
• Emulsifiable oil is re-mixed with the coolant while pumping, avoiding its wastage.
• Scum can be drained separately for easy handling.
